Complete control of the composition and of the manufacturing process

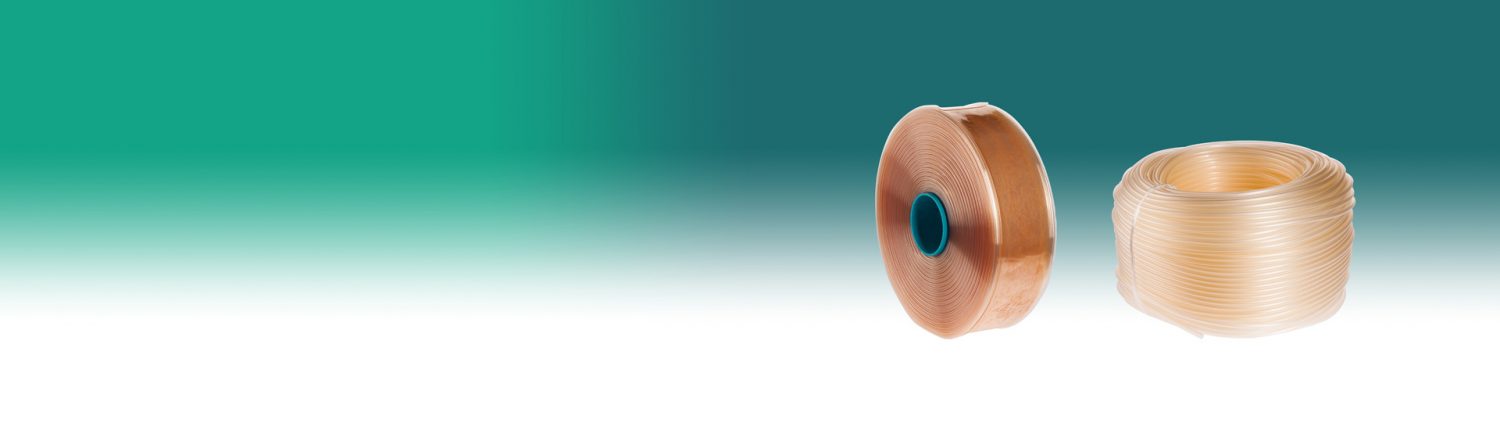

PVC layflat and tubing
SIPPEX LAYFLAT AND TUBING allows the manufacture of flexible bags for medical, pharmaceutical and veterinary applications.
- Complete traceability of the products and high production homogeneousness
- Interior sterility of the layflat achieved by the extrusion process.
| FEATURES | LAYFLAT TUBE | TUBING |
|---|---|---|
| MATERIAL | Plasticized PVC | Plasticized PVC |
| MANUFACTURING PROCESS | Extrusion | Extrusion |
| APPEARANCE | Transparent | Crystal, mat smooth, grooved |
| LAYFLAT TUBE WIDTH | 80 to 340 mm with a tolerance of ±2.0 mm if width is <150 mm and ±3.0 mm if width is >150mm | |
| TUBE DIAMETER | Diameters may vary from 2 mm inner to 10 mm outer with a tolerance ranging from 10 to 15/100 depending on the diameter | |
| LENGTH | From 120 to 220 m depending on the width and thickness | From 2 cm up to 235 m |
| THICKNESS | 0.32 and 0.35 mm standard. Possibility to achieve thicknesses ranging between 0.30 mm and 0.5 mm | Depends on the tube diameter and ranges between 0.5 mm and 1.2 mm |
| PACKAGING | Double overwrapping bag and carton which allows the transfer of the products directly into the clean room | Double overwrapping bag and carton which allows the transfer of the products directly into the clean room |
| TRANSFORMATION | RF weldable | RF weldable |
| REGULATION | Compliance with the European Pharmacopoeia and USP Class VI. The company is ISO certified. | Compliance with the European Pharmacopoeia and USP Class VI. The company is ISO certified. |
